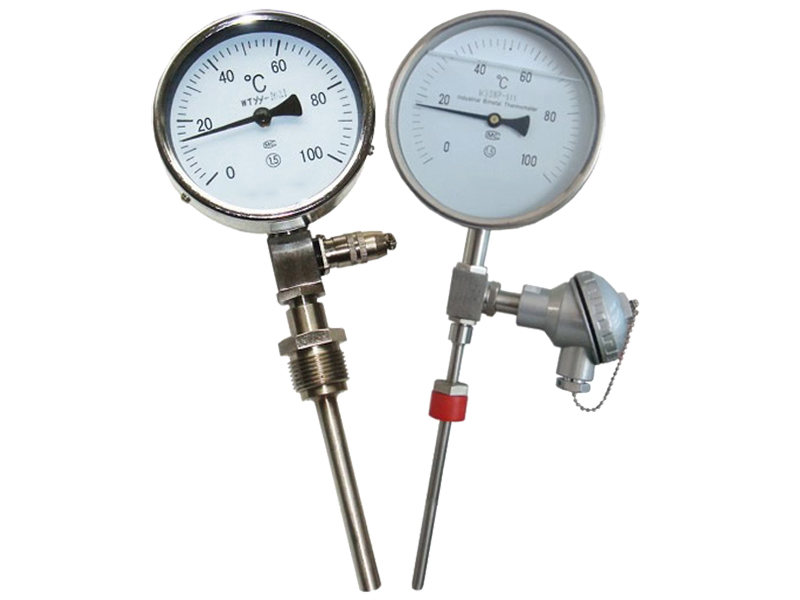

       Integrated bimetal thermometer, on-site temperature measurement needs, long-distance transmission needs, small temperature probe, high sensitivity, etc.

       The integrated bimetal thermometer combines the signal remote transmission function of the thermal resistance or thermocouple with the on-site indication function of the bimetal thermometer. It can meet the needs of on-site temperature measurement and long-distance transmission. It can directly measure the temperature of liquid, vapor and gas medium and solid surface in the range of -40 ~ +600 ℃ in various production processes.

       Performance characteristics

       1. It has the characteristics of small temperature probe, high sensitivity, linear scale and long life.

       2. It has multiple functions such as remote transmission of resistance signals (PT100), shock resistance, corrosion resistance and high-power switching signals.

       3. The structure is the same as the similar international products, and it can replace imports.

       technical parameter

       1. Temperature measurement range -40～600℃

       2. Ambient temperature -10～55℃

       3. Relative humidity 　≤95%

       4. Accuracy class 1.5

       5. Time constant 　≤60S

       6. Probe withstand voltage ≤ 6Mpa

       7. Probe diameter: φ8-10mm, movable external thread: M27*2

       8. Thermal resistance PT100 (single or dual output) or 4-20mA current output

       9. Protection level: IP55
