product manual:

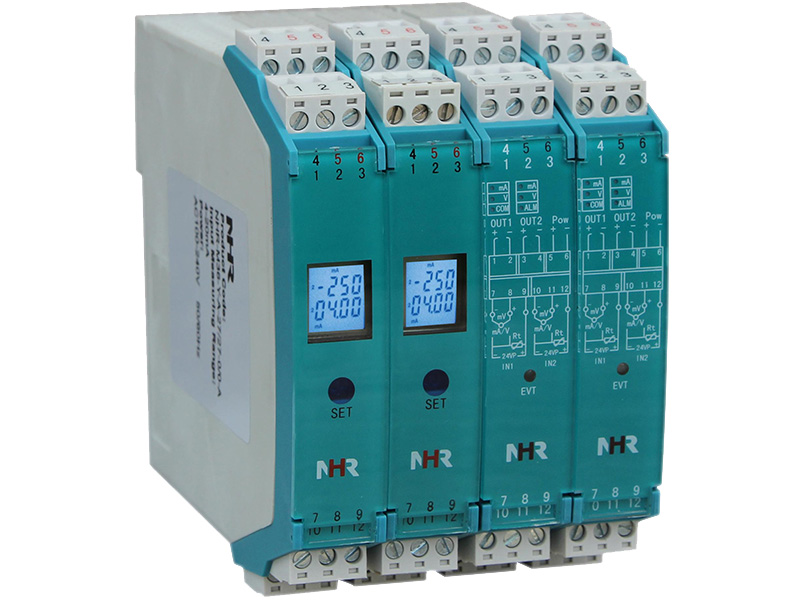

       The intelligent temperature transmitter has excellent performance in the suppression of high and low frequency interference signals. It can still be reliably applied even in high-power frequency conversion control systems. At the same time, the application of digital technology effectively overcomes the linearity difference of traditional temperature transmitters. The shortcomings are in line with the requirements of the electromagnetic interference resistance of the products in the four categories (harsh industrial site) environment specified in IEC61000-4-4:1995. The intelligent temperature transmitter inputs single-channel or dual-channel thermocouple and thermal resistance signals, transmits and outputs isolated single-channel or dual-channel current or voltage signals, and improves the electrical isolation performance between the input, output, and power supply. Intelligent temperature transmitters can be used in combination with unit combination meters and DCS, PLC and other systems, and are widely used in major projects in oilfield, petrochemical, manufacturing, power, metallurgy and other industries.

       technical parameter:

       System transmission accuracy: ±0.2%×F·S

       Cold junction temperature compensation accuracy: ±0.1% Allowable lead resistance when measuring thermal resistance: ≤50Ω

       Working temperature: industrial standard -10～+55℃

       Allowable external load impedance for current output: 0~500Ω for 4-20mA output; 0~1KΩ for 0-10mA output. Please specify when ordering.

       Electromagnetic compatibility: conform to IEC61000-4-4.

       Insulation strength between input/output/power/communication/double circuit: ≥1500V ac

       Storage and transportation environment temperature: -40～+80℃

       Power supply: AC: AC 95～265V

       DC: DC12V～32V (reverse connection protection)

       Input power: 0.9～1.8W (depending on the model, please refer to the calculation method of input power in the appendix of this manual for details)

       Communication interface: RS232 or RS485, MODBUS software protocol (optional).

       Dimensions: width × height × depth: 22.5 × 100 × 115mm
