product manual:

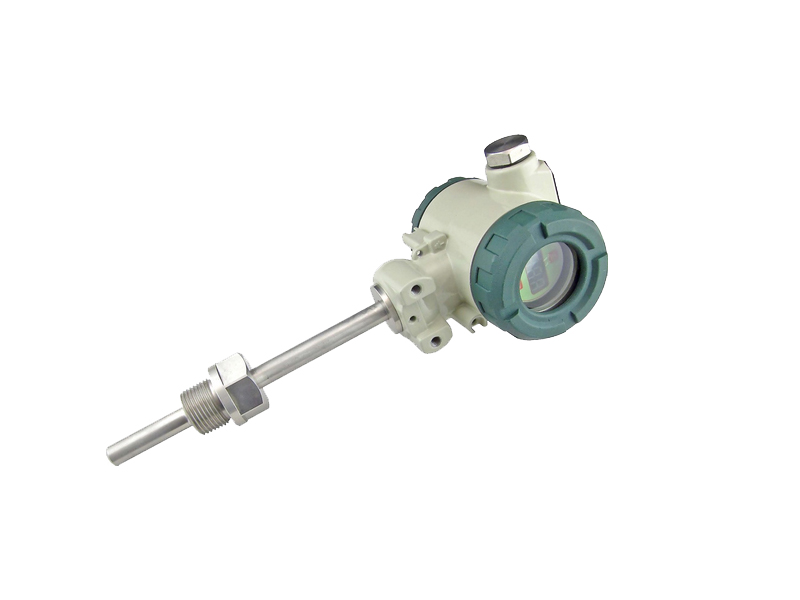

       The integrated temperature transmitter is a combination of a temperature sensor and a transmitter. It converts the temperature signal in the range of -200~+1600 ℃ into a two-wire 4~20mA DC electrical signal to the display and adjust it in a very simple way. Devices, recorders, DCS, etc., to achieve temperature measurement and control. The integrated temperature transmitter is an updated product of temperature measurement and control in modern industrial scenes and scientific research institutes, and is an essential product for distributed systems and digital bus systems.

       Technical index:

       Category SBW Modular temperature change SBW Integrated temperature change

       Accuracy 0.2%F.S 0.5%F.S

       Input thermocouple: B, S, T, K, J

       Thermal resistance: Pt100, Pt10, Cu100, Cu50

       Output 2-wire 4-20mA DC or 3-wire 4-20mA DC

       Operating temperature -25-85 ℃ (0-60 ℃ when integrated LCD head)

       Temperature effect ≤0.05%/ ℃

       Humidity 5-95%RH

       On-site display None 3　1/2LED 3 1/2LCD 0-100% equal division

       Display accuracy None Digital: Class 0.5 Pointer: Class 2.0

       Load capacity <600 Ω (rated load 250 Ω)

       Dimensions 44×18 70 ×100 (repeater)
